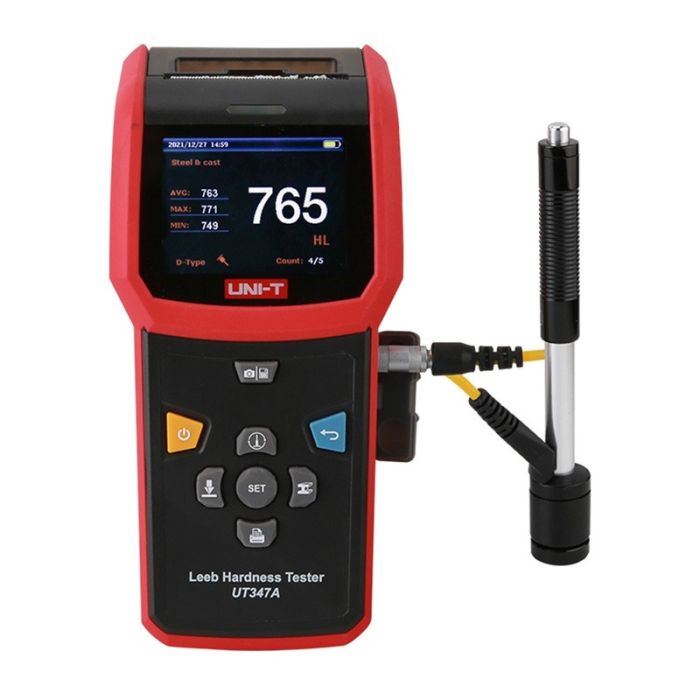

Uni-T Leeb UT347A Portable Hardness Tester 2.8 Inch Colour Display
Hardness scales: HL, HB, HRC, HRB, HV, HS, Tensile strength measurement: σb, Impact angles: 0°, 45°, 90°, 135°, 180°, Storage for 900 records, 2.8 inch colour display 320×240, Bluetooth USB PC software
The Uni-T Leeb UT347A is a portable hardness tester for six hardness scales and tensile strength measurement. It offers five impact angles, multiple measurement modes as well as Bluetooth and USB connectivity. A memory for 900 records and an integrated thermal printer facilitate on-site documentation.
CHF340.95
Incl. VAT and recycling fee
More than 10 available
- Free shipping with Swiss Post
- Us de Bärge – shipped from Thusis
- 60 days free returns
- Price match guarantee
Description
The Uni-T Leeb UT347A is a portable hardness tester based on the Leeb method for mobile use on large or unwieldy components. It covers the hardness scales HL, HB, HRC, HRB, HV and HS, additionally determines tensile strength (σb) and allows measurements at five impact angles from 0° to 180°. Steel, alloy steel, stainless steel, cast iron, aluminium, copper and their alloys can be tested.
For evaluation, the measurement modes Statistical, Multiple Unit, Line Diagram and Histogram are available, which allow clear presentation of results and their distribution. A camera with 640×480 pixels and a 2.8-inch colour display with 320×240 pixel resolution support documentation of measurement points, while up to 900 records are stored internally. Via Bluetooth, USB and PC software, the data can be further processed, an integrated printer provides reports directly on 57 mm wide thermal paper.
The Li-Po battery with 3.7 V and 2500 mAh charges in 2 to 4 hours and can be protected against unnecessary discharge by automatic shutdown after 1, 5, 10 or 30 minutes. The housing is UKCA certified and designed for a drop test from a height of 1 m.
Specifications
| General | |
|---|---|
| Certification | UKCA |
| Technical data | |
| Hardness scales | HL, HB, HRC, HRB, HV, HS |
| Tensile strength measurement | σb |
| Impact angles | 0°, 45°, 90°, 135°, 180° |
| Measurement modes | Statistical, Multiple Unit, Line Diagram, Histogram |
| Memory capacity (records) | 900 |
| Camera resolution | 640×480 |
| Display size | 2.8 inches |
| Display resolution | 320×240 |
| Printer paper width | 57 mm |
| Connectivity | Bluetooth, USB, PC Software |
| Battery voltage | 3.7 V |
| Battery capacity | 2500 mAh |
| Charging time | 2–4 h |
| Auto-shutoff time | 1/5/10/30 min |
| Drop test height | 1 m |
| Compatibility | |
| Supported materials | Steel, alloy steel, stainless steel, cast iron, aluminium, copper and their alloys |
More Information
| Screen size | 2.8 inches |
|---|---|
| Battery capacity | 2500 mAh |
| Screen resolution | 320×240 |
| Connectivity | Bluetooth, USB, PC Software |
