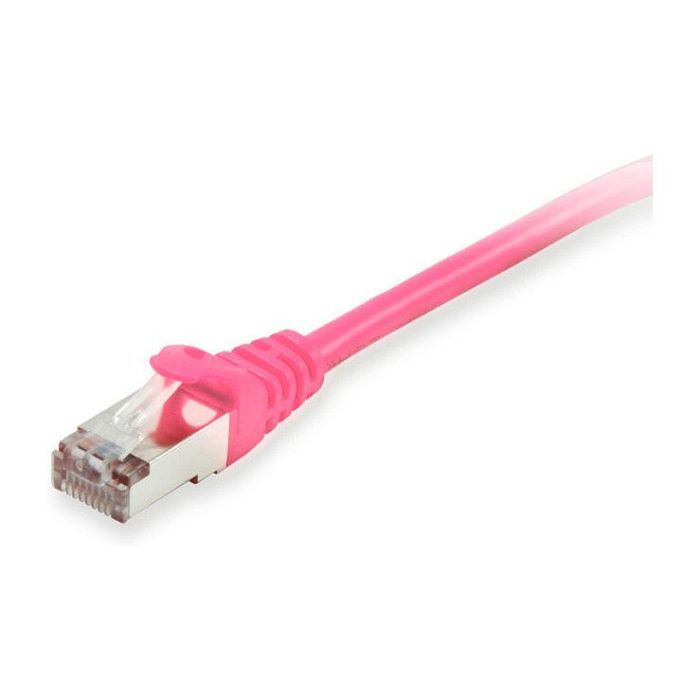

Equip Cat.6a S/FTP Patch Cable 1.5m Pink
Cat6a S/FTP RJ-45 patch cable, 10000 Mbit/s at 500 MHz, Length 1.5 m, color pink, Supports PoE+, Gold-plated connector contacts
Equip Cat.6a S/FTP patch cable in pink with 1.5 m length. It transmits data at up to 10000 Mbit/s at a frequency of 500 MHz and supports PoE+. Equipped with gold-plated RJ-45 connectors on both sides.
CHF8.95
Incl. VAT and recycling fee
More than 10 available
- Free shipping with Swiss Post
- Us de Bärge – shipped from Thusis
- 60 days free returns
- Price match guarantee
Description
The Equip Cat.6a patch cable connects two network devices via RJ-45 connectors and is suitable for cabling according to 10GBase-T. Thanks to S/FTP shielding (S-STP), the multi-stranded copper conductor is well protected against interference, which with the round cable form and an outer diameter of 6.1 mm supports stable signal transmission.
With a data transmission rate of 10000 Mbit/s at 500 MHz, the cable covers Ethernet interfaces from Fast Ethernet via Gigabit and 2.5 Gigabit to 10 Gigabit Ethernet and also supports Power-over-Ethernet according to the PoE+ standard. The jacket made of low-smoke, halogen-free material (LSZH) and the gold-plated connector contacts complete the equipment. With a length of 1.5 m and the pink color, it can also be used for color-coded identification of individual connections in patch panels.
Specifications
| General | |
|---|---|
| Color | Pink |
| Cable form | Round |
| Country of origin | China |
| Dimensions | |
| Cable length | 1.5 m |
| Outer diameter | 6.1 mm |
| Product weight | 52.81 g |
| Technical data | |
| Cable standard | Cat6a |
| Cable shielding | S/FTP (S-STP) |
| Cabling technology | 10GBase-T |
| AWG cable size | 26 |
| Data transmission rate | 10000 Mbit/s |
| Frequency | 500 MHz |
| Power-over-Ethernet (PoE) type supported | PoE+ |
| Compatibility | |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Ethernet interface type | 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Material | |
| Connector contact coating | Gold |
| Jacket material | Low-smoke halogen-free (LSZH) |
| Conductor type | Multi-stranded |
| Conductor material | Copper |
More Information
| Cable length | 1.5 m |
|---|---|
| Country of Origin | China |
