ASUS QG-U1080 8x 2.5G + 2x SFP+ Unmanaged Switch White
8x 2.5G + 2x SFP+ ports, Up to 10000 Mbit/s, Unmanaged switch, MAC table with 16000 entries, Jumbo frames up to 10000 bytes

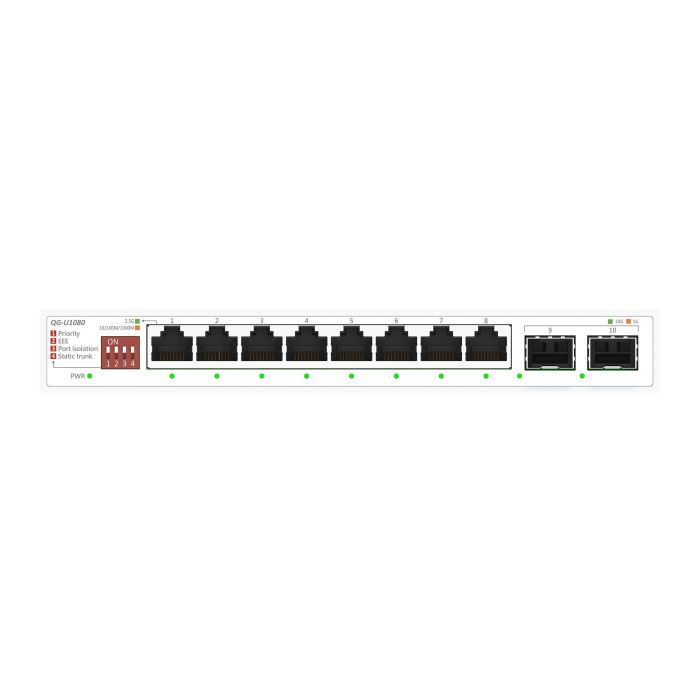

Unmanaged network switch from ASUS with 8 x 2.5G Ethernet ports and 2 SFP+ connectors for up to 10 Gbit/s. Suitable for expanding existing networks with higher bandwidth, particularly for modern WLAN access points. Compact white housing with power and link LEDs.
CHF115.95
Incl. VAT and recycling fee
More than 10 available
- Free shipping with Swiss Post
- Us de Bärge – shipped from Thusis
- 60 days free returns
- Price match guarantee
Description
The ASUS QG-U1080 is an unmanaged switch with 8 RJ-45 ports supporting 2.5G Ethernet (100/1000/2500 Mbit/s) via Cat5e cabling, complemented by 2 SFP+ connectors with up to 10000 Mbit/s. This allows you to connect devices with 2.5G connections and connect them at higher speeds via the SFP+ ports to the rest of the network or to a network uplink.
Internally, the switch processes data at a rate of 59.52 Mpps, manages a MAC address table with 16000 entries, and features a buffer memory of 8 MB. Jumbo frames up to 10000 bytes are supported, as are the network standards IEEE 802.3ab, 802.3bz, 802.3u, 802.3x, and 802.3az. Since no configuration is required, the device is suitable for direct use without management overhead, such as for connecting access points or other switches.
The switch is powered by a 12V DC connection; PoE is not provided. It operates in a temperature range of 0 to 40 °C and is equipped with a white housing featuring LED indicators for power and link.
Specifications
| General | |
|---|---|
| Color | White |
| LED indicators | Power, Link |
| Country of origin | China, Taiwan |
| Technical data | |
| Number of RJ-45 ports | 8 |
| RJ-45 port type | 2.5G Ethernet (100/1000/2500) |
| Number of SFP+ ports | 2 |
| Maximum port speed | 10000 Mbit/s |
| Switch type | Unmanaged |
| MAC address table size | 16000 |
| Data transfer rate | 59.52 Mpps |
| Jumbo frame size | 10000 |
| Data packet buffer memory | 8 MB |
| Power over Ethernet | No |
| DC input voltage | 12 V |
| Power source | Direct current |
| Operating temperature | 0 to 40 °C |
| Storage temperature | -40 to 70 °C |
| Compatibility | |
| Supported cable types | Cat5e |
| Network standards | IEEE 802.3ab, 802.3bz, 802.3u, 802.3x, 802.3az |
More Information
| Country of Origin | China, Taiwan |
|---|
